Product Information

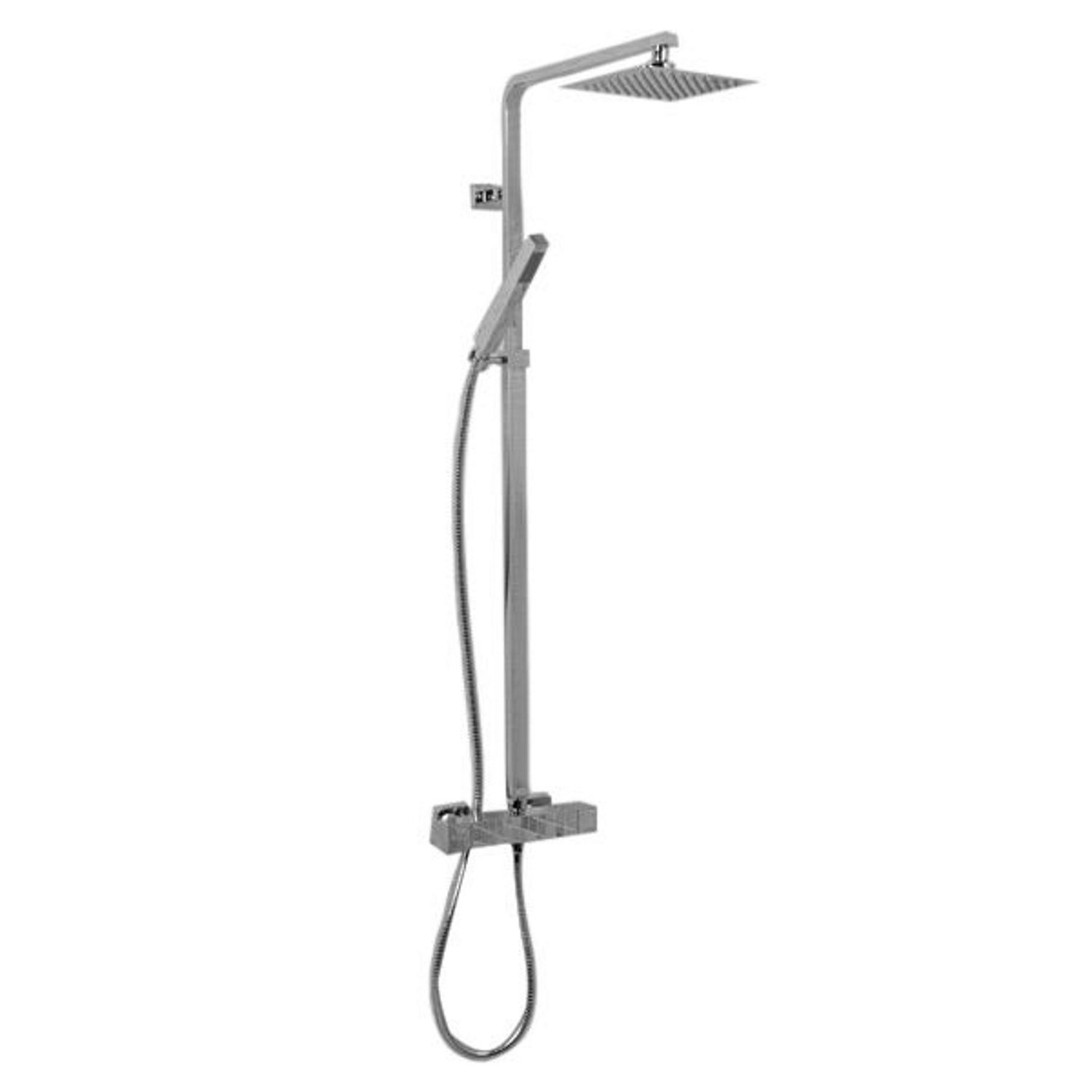

Deluxe Square Ultra Thin 200 Riser Slide Shower Rail Kit with Valve
Summary
The square ultra thin 200 Dual kit Riser pack is design and functionality at the very best. The ultra thin 200mm shower head perfectly compliments the square riser rail and square dual control bar valve. The forefront of modern design at an affordable price.
View Bar Shower Valve's Installation Instructions
View This Product's Installation Instructions
Features
Shower Valve
- Min Pressure: 0.5 bar - Flow Rate - 8.6L
- Max Pressure: 4.0 bar

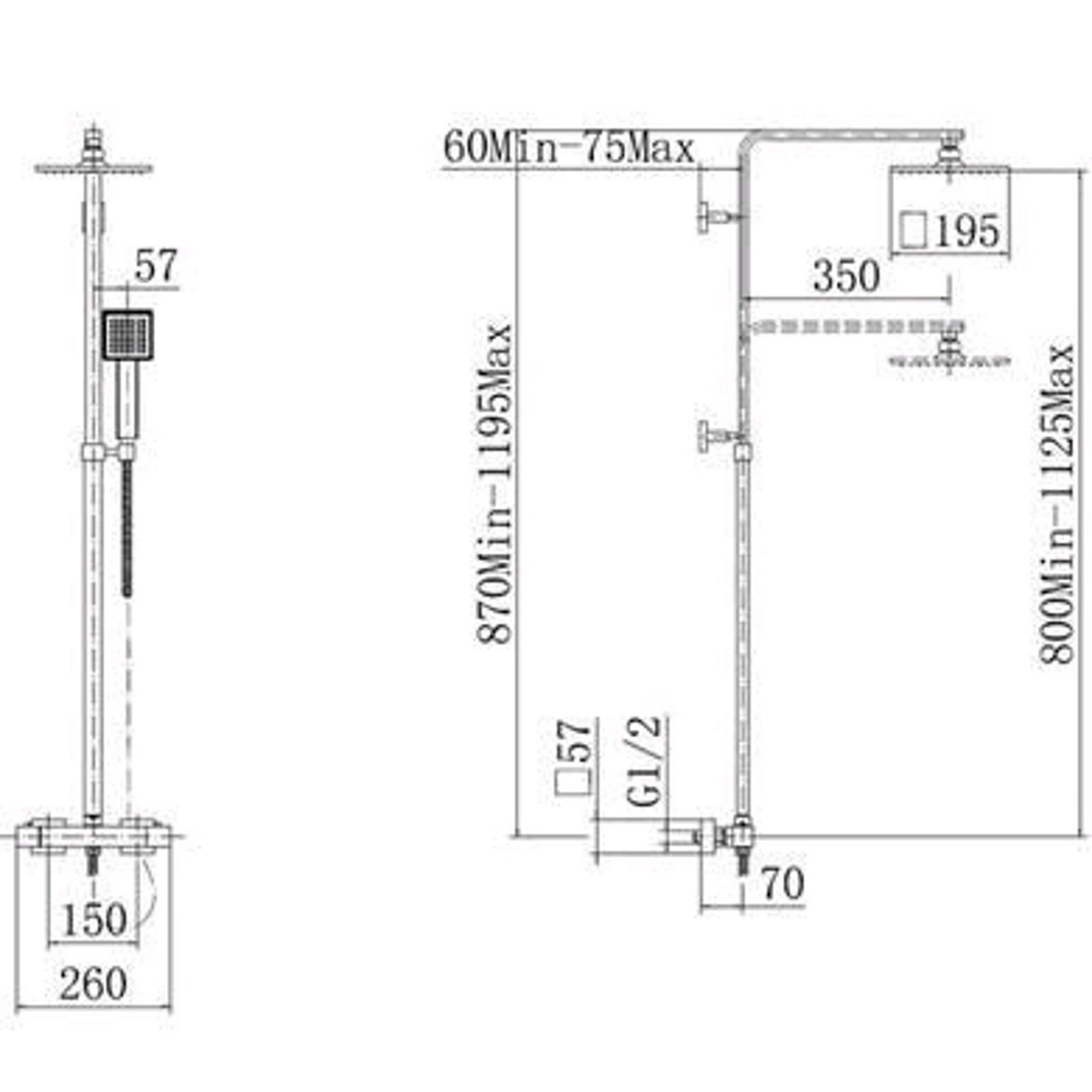

- Height: 70mm outlet to outlet
- Width: 260mm
- Depth: 75mm
- Valve Type: Exposed thermostatic dual bar valve
- Controls: Dual Control
- Safety Features: Built in anti-scald device
- Materials Specification: Solid Brass
- Finish: Chrome
- Suitable for:
- - Combination Boilers
- - Pressurised Systems
- - Pumped Systems
- - Gravity Fed Systems (which may require a pump)
- - Subject to a minimum pressure of 1.0 bar
Slide Rail/Riser Kit

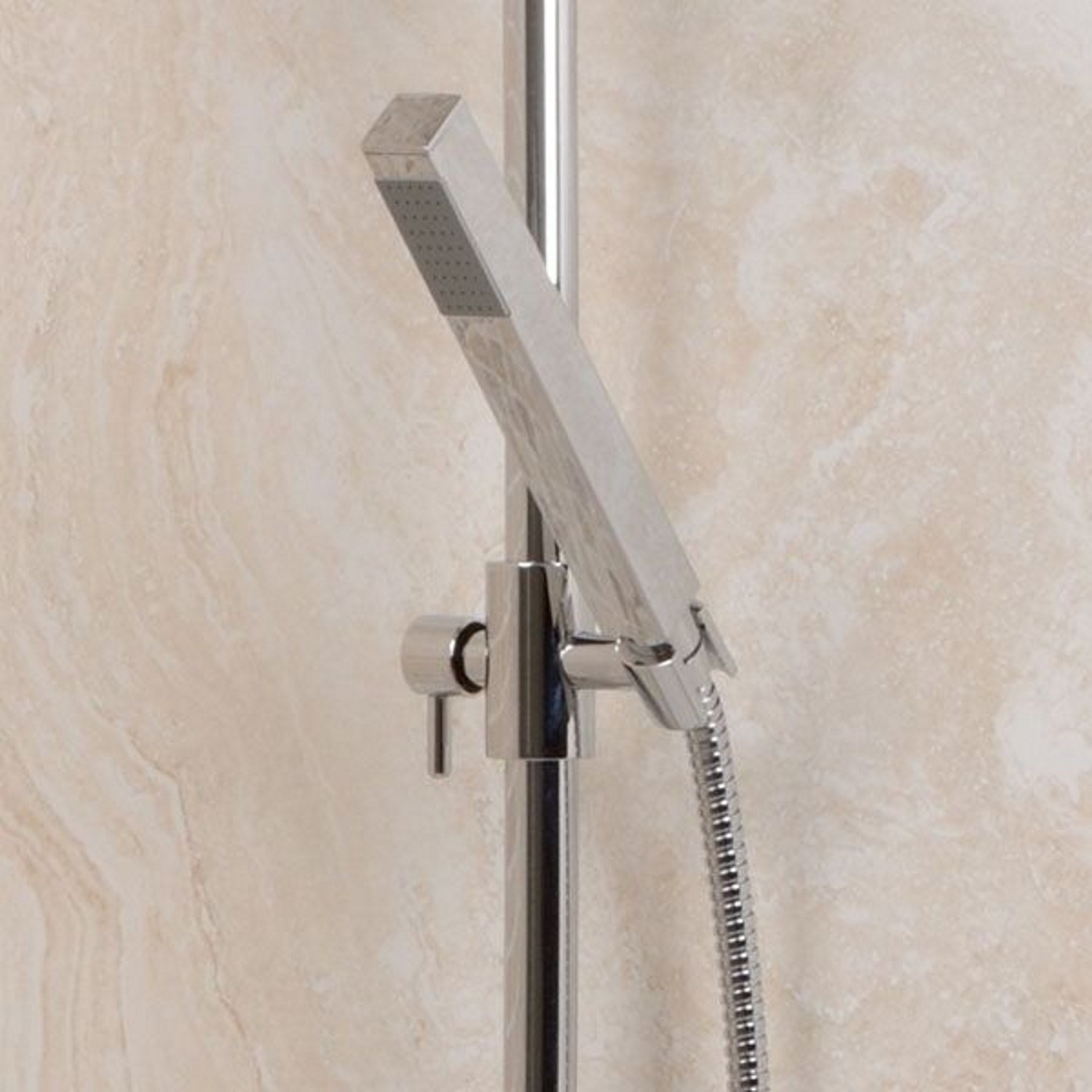

- Length of shower hose: 1.5 metres
- Length of slide rail kit: 1220mm Max - 870mm Min
- Easy clean rubber nozzles on shower handset
- Number of functions on handset: 1
- Pressure Requirements: Minimum 1.0 bar
- Materials Specification: Steel with a chrome finish

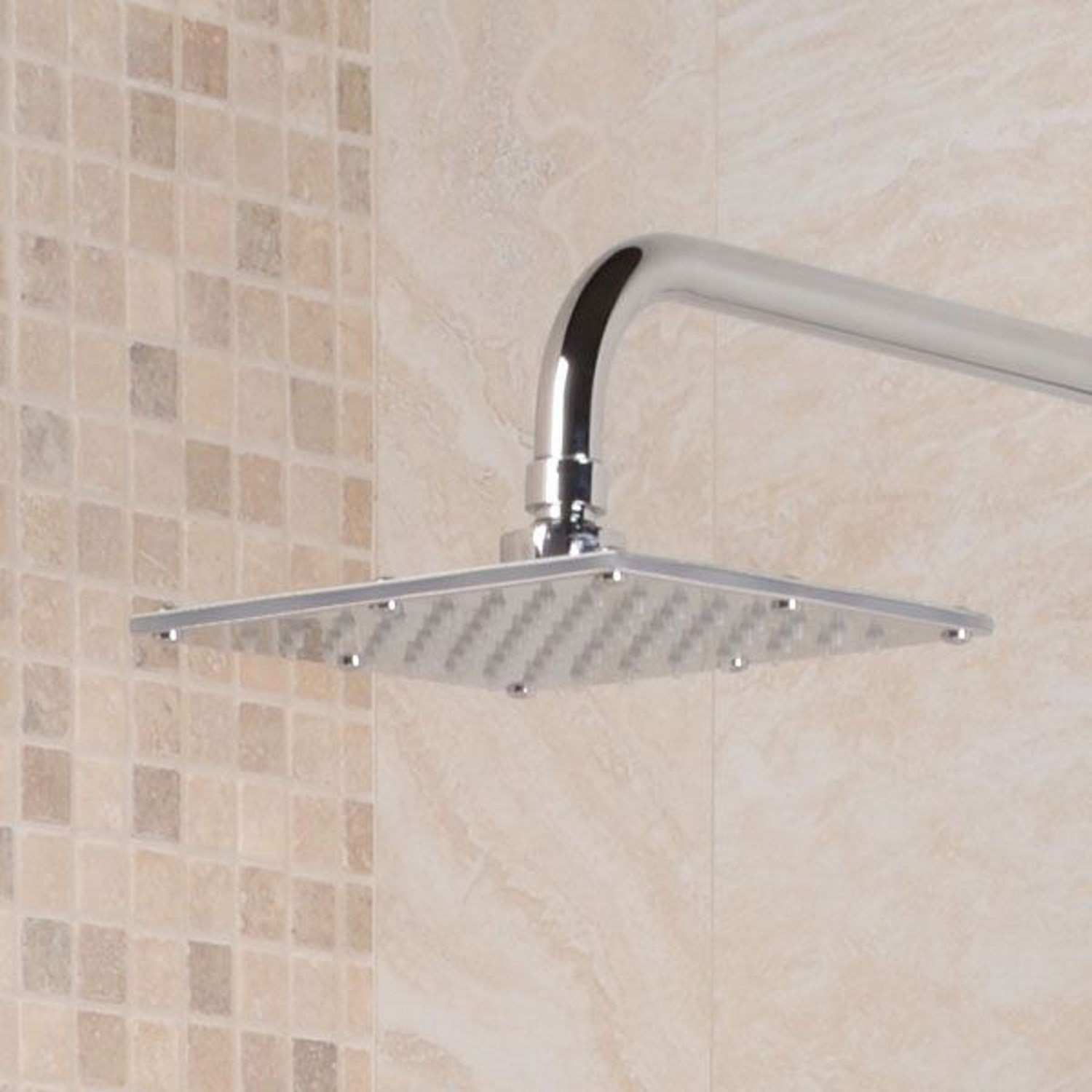

Shower Head:
- 200mm ultra slim designer square head
- Also suitable for use with ceiling arm
- Easy clean rubber inserts on head
- Chrome finish
- Solid brass arm chrome plated
- Minimum pressure 0.5 bar
Item Code:
BUN/BeBa_GR-LY-07CA1/71012
Please Note: All sizes are approximate and should be used for guidance only.
Question from Gary Parker: Asked on 01/09/2016 can you buy parts for the square valve assembly. mine leaking from on off switch side, looks like the plastic is cracked.
Thanks
Answer from Simon Hi,
Yes we would be able to get any parts for you individually, if you just contact our aftersales/parts department on 01925 544 861 they will be able to assist you with this.
Regards
Simon
Question from m leivers: Asked on 07/11/2014 can you adjust the water flow so that it only comes from the main shower head or the hand held unit (i.e. water doesn't come from both all the time)?
Thanks
Answer from Matt Clarke Hi,
Yes this is just one or the other. You can not use both at the same time.
Regards
Question from Amelia : Asked on 16/05/2014 Can the smaller head on this shower be moved up and down? I.e can it be adjusted to different heights?
Answer from Andrea Bullen Hello and thank you for your question.
The small shower head is fixed on this item.
Regards.
Question from Andrew: Asked on 12/02/2014 Do you also need the easy valve kit to install this showr?
Question from Lawrence: Asked on 10/02/2014 What are the measurements for pipe fixing on this shower?
Question from Hollie: Asked on 17/11/2013
Can you adjust the angle of the shower head on this model?
Answer from Nathan McGregor
Hi. Yes you can move the head 360 degrees. Thanks.
Question from Lorraine: Asked on 01/07/2013
Does the small detachable shower move up and down the riser?
Answer from John Smith
Hi,
Thanks for your question. In this instance the shower handset is stationary and does not move.
Question from Kyle: Asked on 02/03/2013
Hi, Can I install this with a solid brick wall?
Answer from Mike B
Hi there
With this item, you do need your hot and cold pipe to come from the wall.
Question from MR L MAHON: Asked on 18/09/2012
Hello
Can the unit be used with a water pump as pressure from my hot water is very low?
Answer from Rob Molloy
Hello
Yes you can use a pump on this system
