Deluxe Square Ultra Thin 300 Riser Slide Shower Rail Kit with Valve BUN/BeBa_GR-LY-07CA1/71013

Quickfind code: 1362918
  • Clearance sale
£189
or £9.07 a month more info

See all delivery & collection options

Our delivery costs vary based on item size and delivery address. Please refer to our delivery page for further information, or enter your postcode to get an exact delivery price.

Enter delivery postcode for options and prices:

Two Man Delivery Service

Our two man delivery teams take the hassle out of receiving your bathroom and tile products. We’ll deliver your goods straight to your home.

Trusted Delivery Partners

If we’re not in your area, don’t worry! We've teamed up with trusted delivery partners Palletways, Royal Mail and Parcel Force.

click to close
Why buy me
  • Valve Type: Exposed thermostatic dual bar valve
  • Min Pressure:0.5 bar - Flow Rate - 8.6L
  • Max Pressure: 4.0 bar
  • Height: 70mm outlet to outlet
  • Width: 260mm
More Info »
1 Year Warranty
click
Ways to pay

Ordering from us is easy. We accept all major credit and debit cards, including Visa, MasterCard, Switch, Delta, Maestro and Solo - making placing an order with us as easy and convenient as possible.

payment options

We now accept Amazon Pay!
In the basket, press the ‘Pay with Amazon’ button and use the same login details as you would on Amazon’s site and all your saved cards and addresses can be used to complete your order much quicker, without needing to enter any new details with us.

click

Popular Bundles

Product Information

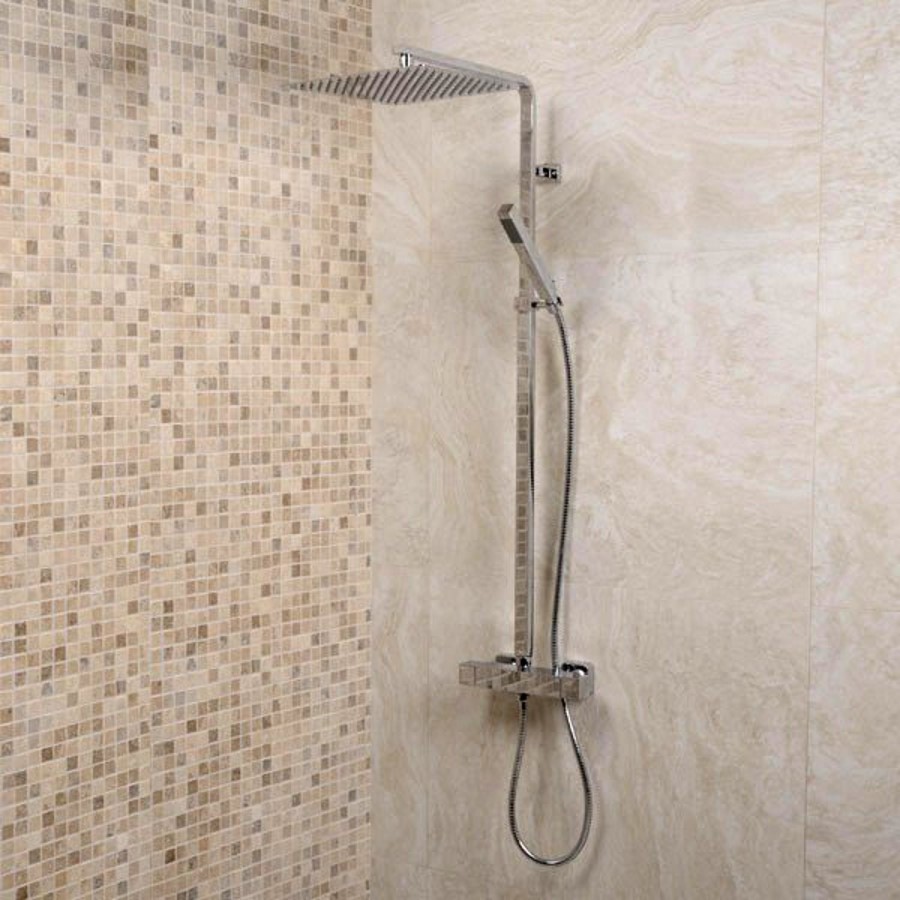

Deluxe Square Ultra Thin 300 Riser Slide Shower Rail Kit with Valve

Summary

The square ultra thin 300 Dual kit Riser pack is design and functionality at the very best. The ultra thin 300mm shower head perfectly compliments the square riser rail and square dual control bar valve. The forefront of modern design at an affordable price.

Download PDF View Bar Shower Valve's Installation Instructions


Download PDF View Square Riser Kit's Installation Instructions

Features

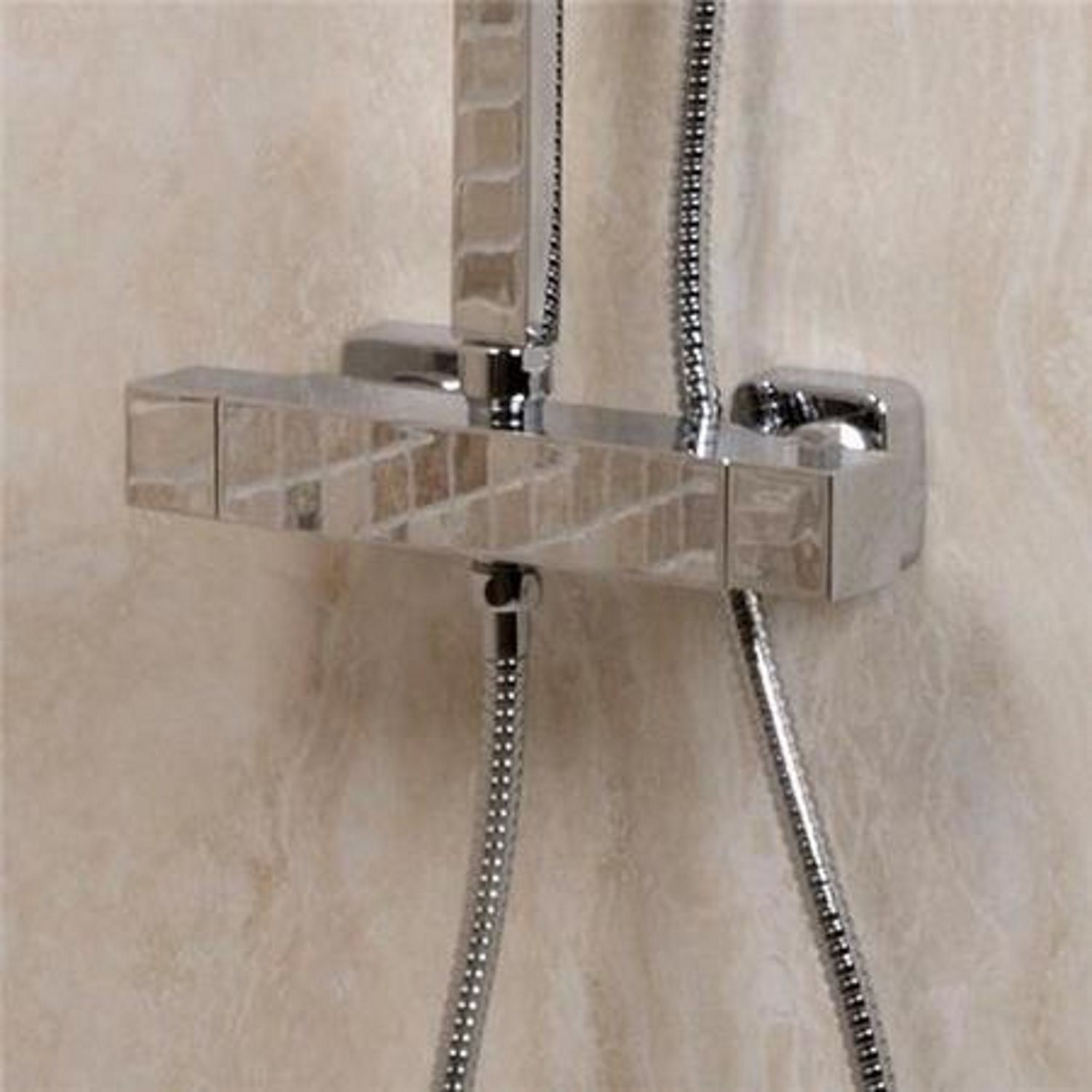

Shower Valve

  • Valve Type: Exposed thermostatic dual bar valve
  • Min Pressure: 0.5 bar - Flow Rate - 8.6L
  • Max Pressure:  4.0 bar
  • Height:  70mm outlet to outlet
  • Width:  260mm
  • Depth:  75mm
  • Controls:  Dual Control
  • Safety Features:  Built in anti-scald device
  • Materials Specification:  Solid Brass
  • Finish:  Chrome
  • Suitable for:
    • - Combination Boilers
    • - Pressurised Systems
    • - Pumped Systems
    • - Gravity Fed Systems (which may require a pump)
    • - Subject to a minimum pressure of 1.0 bar

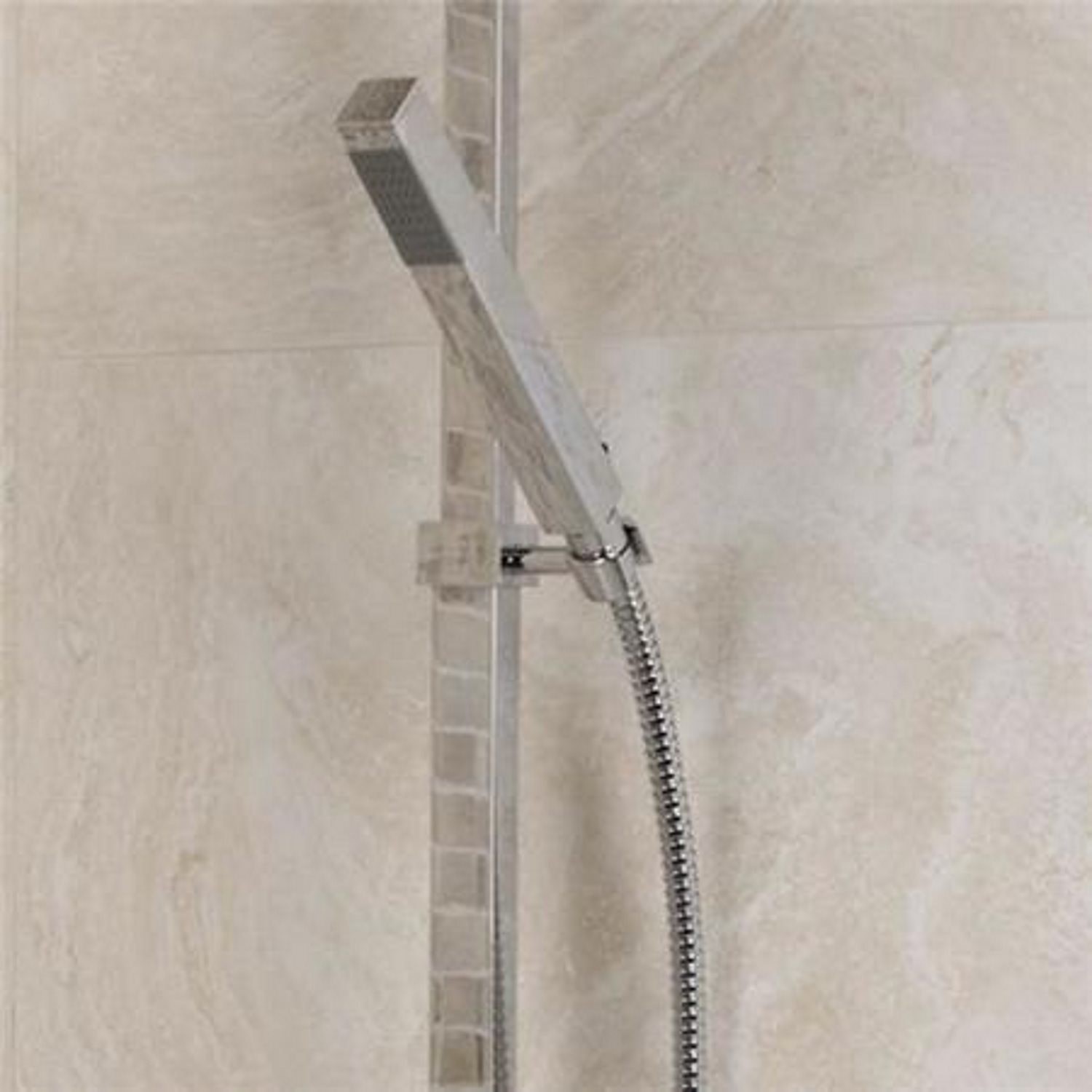

Slide Rail/Riser Kit

  • Length of shower hose: 1.5 metres
  • Length of slide rail kit:  1220mm Max - 870mm Min
  • Easy clean rubber nozzles on shower handset
  • Number of functions on handset: 1
  • Pressure Requirements:  minimum 1.0 bar
  • Materials Specification: Steel with a chrome finish

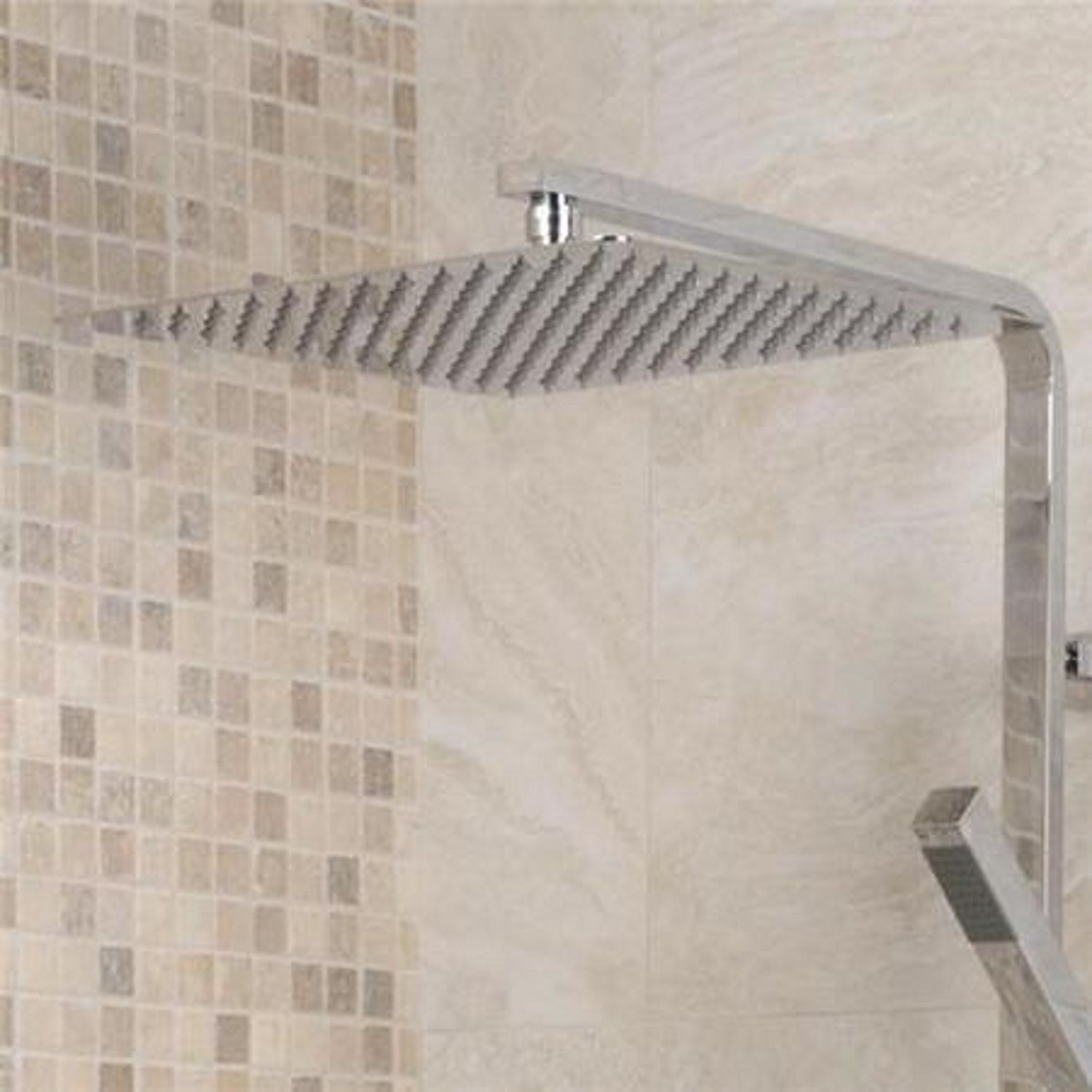

Shower Head:

  • Weight (kg): 3
  • Width (mm): 300
  • Height (mm): 48
  • Length (mm): 300
  • Finish: Chrome
  • Material Specification: Brass and ABS
  • Shape: Square
  • Minimum Pressure and Flow Rate (Bar): 1
  • Max Pressure and Flow Rate (Bar): 5
  • Suitable for Combi Boilers: Yes
  • Suitable for Pressurised Systems: Yes
  • Suitable for Pump Systems: Yes
  • Product Detail: Shower Heads
  • Product Style: Contemporary

Item Code:
BUN/BeBa_GR-LY-07CA1/71013

Please Note: All sizes are approximate and should be used for guidance only.



Finance Options

Enter your order total:
£
Calculate

Questions & Answers

Question from Ian Griffin: Asked on 03/02/2018 how far out does the shower head come from the wall?

Answer from chris Hi,

The shower head projects 55cm

Question from Justin: Asked on 27/10/2017 Is there anything else, valves etc that I need to buy to install this?

Question from Wendy Molyneux: Asked on 22/10/2017 The large showerhead - is this fixed or is this on the riser? Need a shower that will be usable by someone who is 6 ft 2 and someone who is 5 ft 5!

Question from Monika kakietek: Asked on 05/04/2015 What the distance from the shower head and the wall?

Answer from Jamie Hi,

Thank you for your question the projection off the wall is approximately 550mm if you have any further questions please feel free to give us a call on 0161 667 6560.

Question from Matt: Asked on 14/01/2015 Which Combi boiler would you suggest for this shower? As I am worried that it may not be able to keep up with the flow rate, and run out of hot water.

Answer from Anthony Hi there,

Thank you for your question

You would need a combination boiler that can run at a Minimum Pressure & Flow Rate of 1.0 bar for the shower to function and no more than a Maximum Pressure & Flow Rate of 3.0 bar.

I would advise speaking to a plumber for any further help you may require

Kind Regards

Question from Ma: Asked on 27/10/2014 Hi can you tell me the distance from the wall to the centre of the shower head please, dimensions are not available on this item, thanks

Answer from Matt Clarke Hi, This distance is 43cm appox.

Question from mark: Asked on 15/08/2014 Hi
How far does the centre of the shower head stand out from the wall?

regards

Mark

Answer from Nathan McGregor Hello.

It is approx 300mm.

Regards.

Question from Frank: Asked on 06/08/2014 Hi there,

What's the distance from wall fixing to end projection of shower head? So max projection of unit, as the dimension page doesn't appear to work. For this and the 200m model?
Thanks

Answer from Peter Hi

Thank you for your question,

The max projection for the shower heads are

300mm - Approx 560mm

200mm - Approx 510mm

I hope this information helps but if you need any further help please contact the sales team on 0844 484 7678.

Question from Sarah Kelly: Asked on 20/06/2014 We purchased the above shower from you but don't like the large shower head with it. Do any of your other shower heads sold separately fit on this shower. Thank you

Answer from Nathan McGregor Hello.

If you want one smaller then please look here; /st/shower-heads. If you would like an exchange please call our customer support team on 0844 484 7678 (Option 2).

Regards.

Question from Kev Smallman: Asked on 13/04/2014 What is the length of the rigid riser please

Answer from Peter Hi there,

The (length of the rigid riser) Length of slide rail kit is adjustable from 1220mm Max - 870mm Min before installation.

It cannot be adjusted once installed.

Kind Regards

Question from reynolds: Asked on 03/01/2014 can you take the anti scald off as its not hot enough

Question from LEE MACGREGOR: Asked on 31/12/2013 Hi is this a thermostatic shower? thanks

Question from Jazz Gill: Asked on 25/07/2013

How do you swap between the overhead shower and the handheld wand on this unit ? Not clear from the picture where the lever is situated.

Question from Beryl Ralston: Asked on 04/09/2012

Could you please tell me if the hand held shower head slides on the rail or is it fixed. Thank you.

Answer from Anthony

Hi there



The hand held shower is fixed.

Question from Tony Williams: Asked on 09/06/2012 How far apart are the water inlets on the mixer valve. Need to know how far apart to set hot and cold feed.
Many thanks

Answer from Rob Molloy Hi there, the inlet feeds are 15mm apart.

Question from Jade millward: Asked on 25/04/2012 Hi, my plumber is asking what the distance is from the shower valve where the pipes go into to the head of the shower height wise please. Thanks

Answer from Mike B Hi there,

From the top of the valve to the mounting arm it is approximately 1100mm.

Question from Mrs Ahmed: Asked on 27/03/2012 Is this suitable for use with combi boiler

Answer from Mike B Hi there,

This item is suitable to use with a Combi Boiler.
